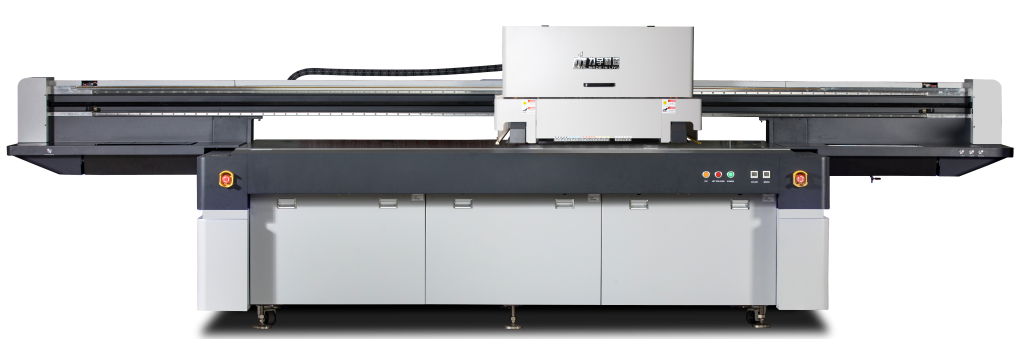

    Galaxy F3/F2 UV Flatbed Printer

    As a versatile model of LIYU, the Galaxy F3/F2 UV Flatbed Printer features unique handle control that deliver excellent precision and color reproduction to perfectly present your distinctive creativity.


    • Camera positioning (optional)

    • 8-color option

    • High-precision UV technology

    1. Multi-configuration Flexibility

       Choose Ricoh, Konica, or Epson print heads based on application needs – from high-definition crafts to high-speed mass production, delivering unmatched versatility to print anything, any way you want.



    2. Classic Aesthetic Design

       Sleek lines and ergonomic layout ensure lasting visual appeal and operator comfort, combining style with fatigue-free long-term use.



    3. High-Rigidity Frame

       Next-generation structure and drive system provide rock-solid stability, maintaining micron-level precision with zero vibration during continuous operation.



    4. Honeycomb-Structure Leveling Platform

       Honeycomb structure + multi-point micro-adjustment ensure consistent leveling across large sheets, eliminating ghosting entirely.

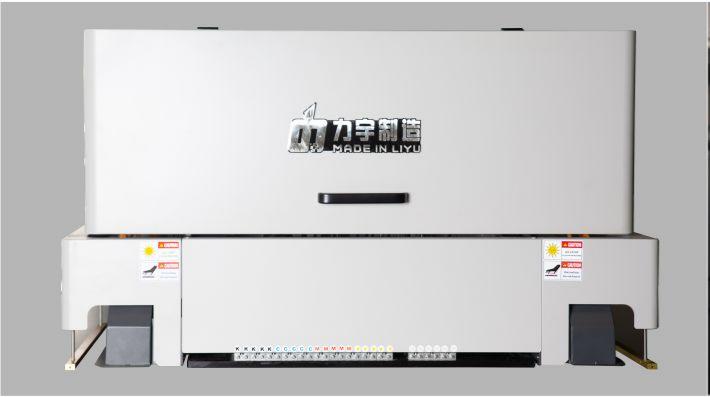

    5. Flexible anti-collision carriage

       Instant retraction upon accidental contact protects print heads and UV lamps like a "soft shield", minimizing damage from misoperations.



    6. Manipulating Handle

       Handheld remote control = 3-axis movement + zoned adsorption + precise media positioning + safety protection—complex operations simplified at your fingertips.



    7. Dual Negative Pressure Ink Supply

       New air-ink path + intelligent dual negative pressure + ink overflow protection, ensuring stable and reliable ink supply.



    8. Quick-Detach Adsorption Fan

       Integrated fan design allows quick disassembly and assembly, facilitating customer installation and use.



    9. Independent Flash Spray Station

       Automatic flash spray and moisturizing keep print heads "ready at any time", eliminating clogging worries.


    Model

    KC2512/KC3020

    Type of print head

    RICOH GEN6

    Print head quantity

    Use software to adjust the temperature and voltage of the print head

    Droplet volume

    4.8 pl / 7 pl / 5 pl / 13 pl (variable droplet)

    Color profile

    CMYKLcLm+White+Varnish

    Ink type

    UV-LED

    Drying device

    UV Curing-LED Curing

    Flatbed size

    2500 mm × 1250 mm/3050 mm × 2050 mm

    Printing thickness

    100 mm/250 mm (optional)

    Printing resolution

    2880 dpi/1200 dpi

    Maximum printing speed

    120 m2h/60 m2h/80 m2h/110 m2h

    RIP software

    PhotoPrint /Caldera (optional)

    Hardware

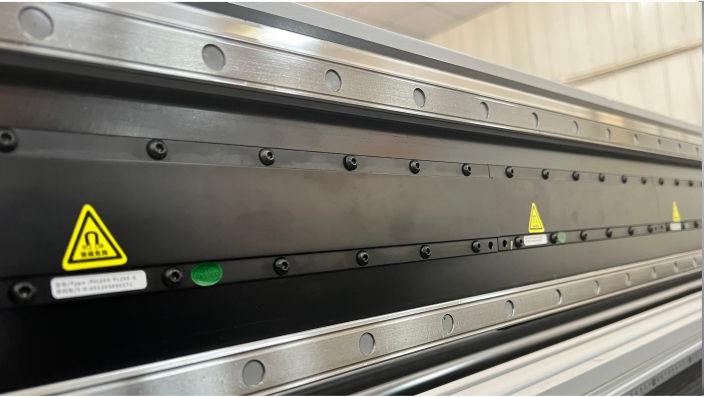

    X-direction driver: Panasonic servo motor / linear motor (optional)

    Y-direction driver: ball screw*2 + linear guide*2 + Panasonic servo motor*2



    Power supply

    230 V(+/-)10%/40 A/50 HZ/60 HZ

    Machine 2512 size

    635 × 2400 DPI (1 head for 2 colors)
    635 × 4800 DPI (1 head for 1 color)

    Machine 3020 size

    3000 mm × 5800 mm × 1530 mm

    Machine weight

    1370-2500 kg
